YEV-QCL2A Connector Specifications

Parameters

Materials and Surface Treatment

Market and Application

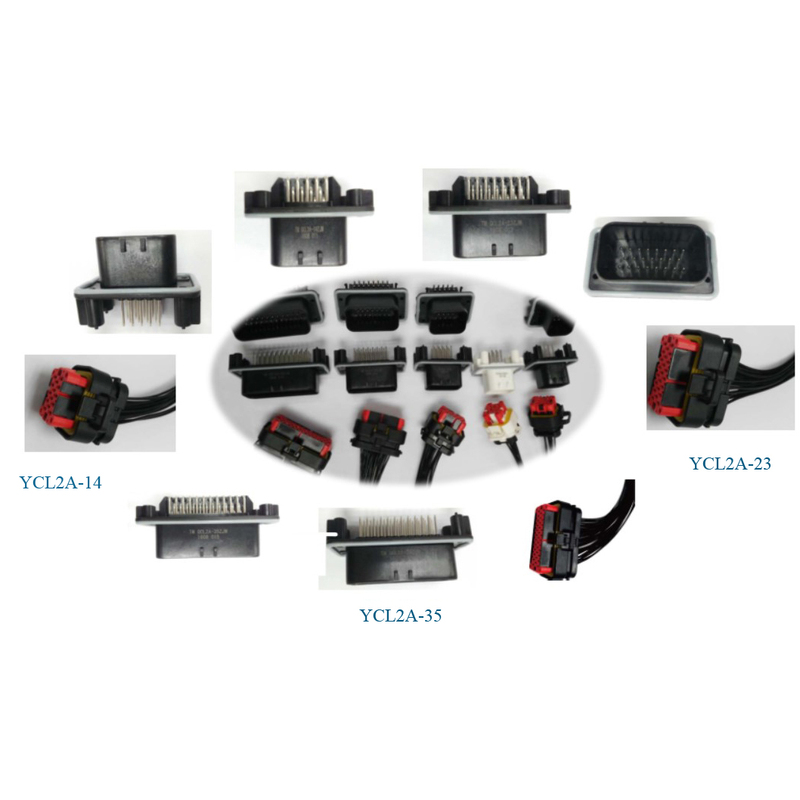

Theproduct is mainly used in the steering of new energy vehicles, which plays therole of signal transmission and connection. At the same time, it provideselectronic interlocking function signal transmission. The straight/bent socketand the PCB board are welded to the circuit panel. The insulator uses hightemperature and high pressure resistantMaterial, rubber seal adoptsautomatic glue injection machine to inject high temperature resistant siliconematerial, which can ensure the sealing and normal operation under hightemperature and high humidity environment. At present, the company's productshave 8 cores, 14 cores, 23 cores, 35 cores

Outline and Installation Dimensions

35 Cores drawing23 Cores drawing14 Cores drawing8 Cores drawing

Unmarked tolerances according to ±0.38mm
